ELECTRA MOTOR CORPORATION

Powering a
cleaner future.

Li-ion battery systems for renewable energy storage and small commercial electric vehicles.

From stored energy to everyday motion.

Wind turbines harvesting renewable energy — ENERGY IN TRANSITIONBuilt around a better tomorrow.

01 / ABOUT ELECTRA

Better energy.
Practical possibilities.

Based in Vancouver, Canada, Electra Motor Corporation develops and manufactures advanced Li-ion battery systems for renewable energy storage and small commercial electric vehicles.

Our founders bring more than three decades of clean technology experience, spanning fuel cells, hybrid vehicles and advanced batteries. We combine this experience with a focus on thoughtful design, dependable manufacturing and customer support.

Renewable energyStorage for solar and wind

Electric mobilityPower for small commercial EVs

System integrationBattery management and configuration

02 / OUR PRODUCTS

From battery packs
to complete energy systems.

A closer look at the products and controls behind your application.

Loading interactive model...

Drag to rotate. Scroll to zoom.

BATTERY ENGINEERING, UP CLOSE

Explore every angle.

Explore the battery pack in 3D. Rotate the model and reveal the component annotations for a closer look.

Battery Packs

Lead-Acid Replacement

12V 80Ah Low-Temp Battery Pack (Lead-Acid Replacement)

Capacity: 80 Ah
Maximum Discharge Current: 1,200 A
Energy: 1062.4 Wh
Voltage: 12.8 V
Dimensions: 280 × 176 × 189 mm
Weight: 9.5 kg
Cycle Life: 2,000 cycles

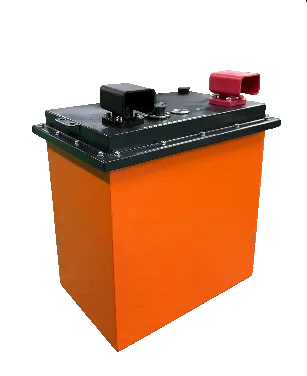

48V 30Ah Low-Temp Battery Pack (Lead-Acid Replacement)

Capacity: 30 Ah
Maximum Discharge Current: 200 A
Energy: 1545.6 Wh
Voltage: 48 V
Dimensions: 292 × 180 × 264 mm
Weight: 13.91 kg
Cycle Life: 2,000 cycles

BMS & EMS

Our proprietary Battery Management System (BMS) and data platform provide real-time monitoring and intelligent control for tens of thousands of cells, supporting safety and efficiency throughout the system lifecycle.

Intelligent BMS Management

Proprietary battery management system with millisecond-level protection response and precise cell monitoring and balancing, scalable to battery systems with tens of thousands of cells.

Monitoring & Reporting: System voltage, current, temperature, SOC, SOE, SOH
Communication Interfaces & Protocols: RS-485 / CAN / Wi-Fi / Cellular / Modbus / RS-232 (Optional)

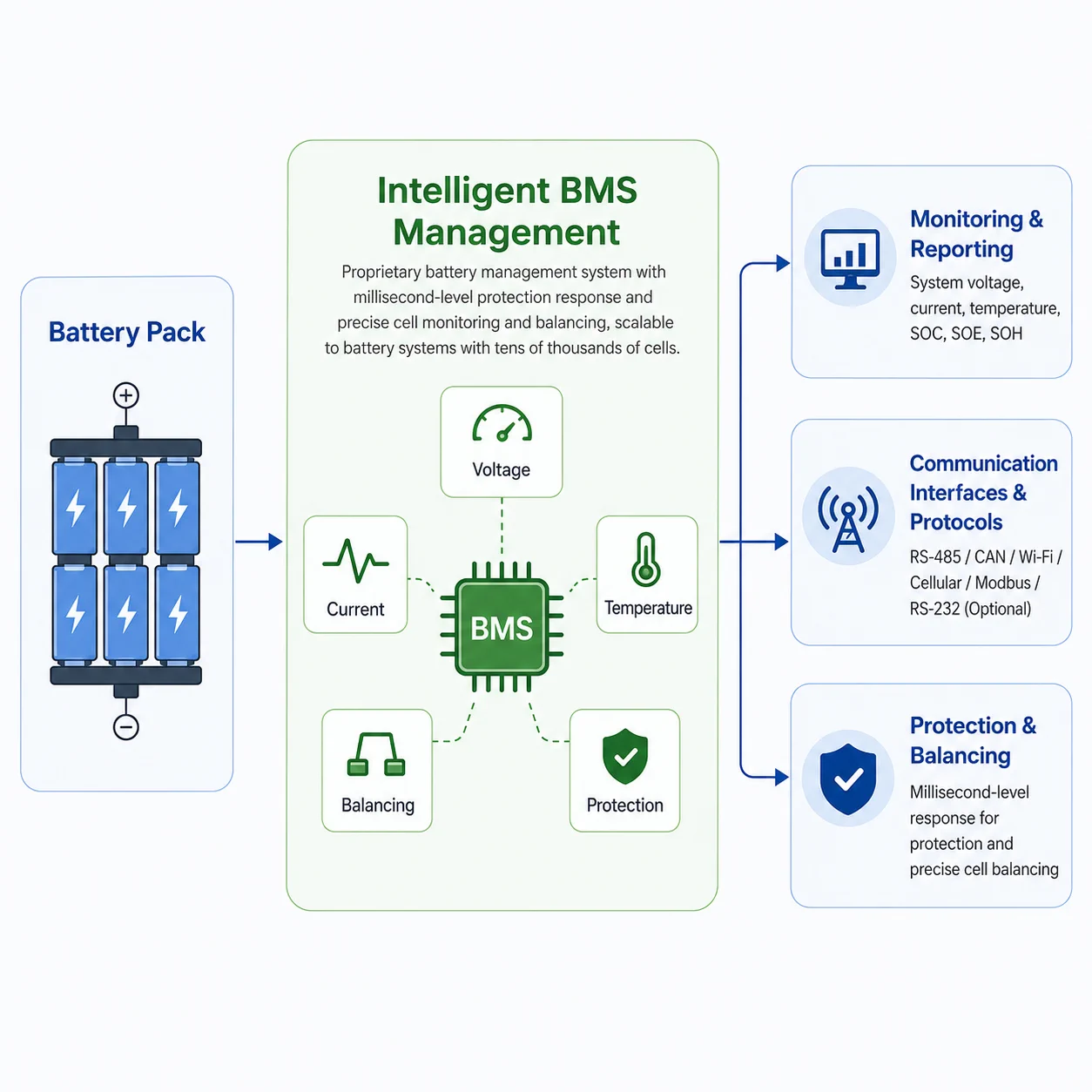

BMS information flow from battery pack sensing through intelligent BMS management to monitoring, communication interfaces and protocols, and protection and balancing.

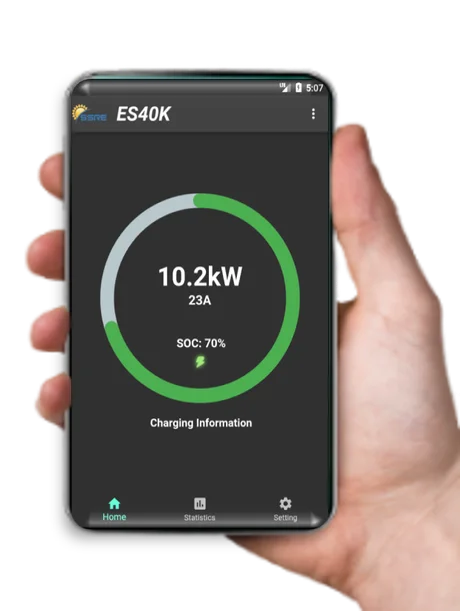

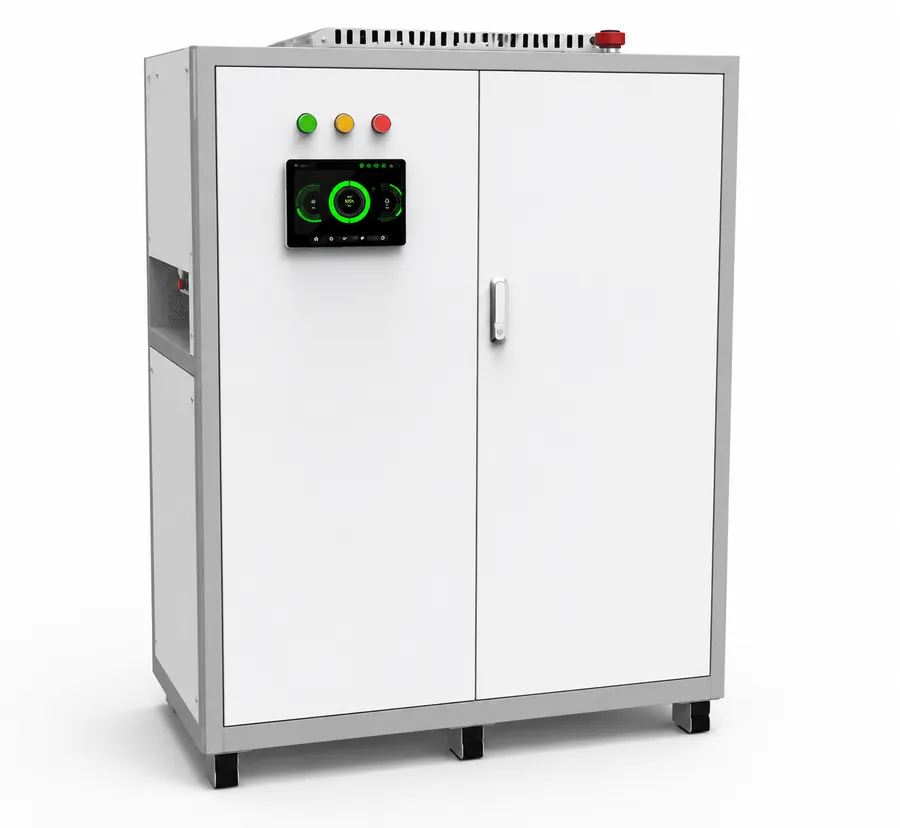

Energy Management System (EMS)

Our EMS coordinates PV generation, battery storage, loads, and grid flows to improve energy efficiency and maintain a steady, reliable energy supply.

Intelligent Flow Control Optimize peak shaving and load shifting based on weather and solar irradiance forecasts, maximizing PV utilization while reducing peak demand and grid impact.
Energy Arbitrage Charge during low-price periods and discharge when electricity prices are high, helping reduce energy costs and improve asset utilization.
Predictive Maintenance Continuous system monitoring and intelligent diagnostics enable early anomaly detection, rapid fault identification, and precise fault isolation.

PVPV

Load

EMSEnergy Management System

BatteryBattery

Grid

Energy Storage Systems

Scalable high-voltage energy storage systems for commercial, industrial, and utility-scale applications.

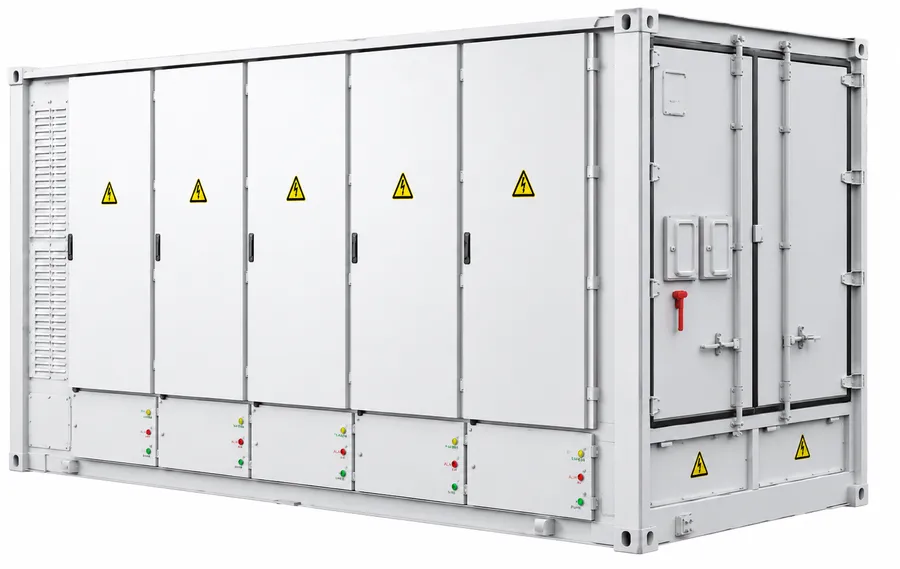

EG4M

3.72 MWh

Outdoor high-voltage energy storage system

Nominal Energy3.72 MWh
Usable Energy3.35 MWh
System Weight35,000 kg
Dimensions (W × D × H)2600 × 6200 × 3000 mm
Nominal Voltage1335.2 V DC

View full specifications

EG4M full specifications
Battery Type	LFP (LiFePO₄)
System Weight	35,000 kg
Dimensions (W × D × H)	2600 × 6200 × 3000 mm
Calendar Life	10 years
Nominal Energy	3.72 MWh
Usable Energy	3.35 MWh
Depth of Discharge	90%
Nominal Voltage	1335.2 V DC
Operating Voltage Range	1160–1500 V DC
Charge / Discharge Temperature	−20 °C – 55 °C
Storage Temperature	−20 °C – 45 °C
Humidity	0%–95%
IP Rating	IP65
Battery Monitoring System	SSRE battery monitoring system
Monitoring Parameters	System voltage, current, temperature, SOC, SOE, SOH
Fire System	Passive/active fire protection (optional)
Communication Interfaces & Protocols	RS-485 / CAN / Wi-Fi / Cellular / Modbus / RS-232 (Optional)
PCS Rated Power	1,000 kW
Grid Voltage	400 V AC
Maximum AC Current	1,672 A
Total Harmonic Distortion	< 3%
Grid Frequency	50 / 60 Hz
Peak Efficiency	98%
Power Factor	Continuously adjustable, −1 to 1
PCS Weight	2,600 kg
Safety Standards & Certifications	IEC 62619 / UL 1973 / UL 9540A / IEC 61000-6-2 / IEC 61000-6-4 / IEC 62477-1
Transport Compliance	UN 38.3
PCS Standards & Certifications	VDE-AR-N 4110 / G99 / IEC 62477-1 / IEC 61000-6-2 / IEC 61000-6-4 / IEEE 1547-2018 / UL 1741 / UL 1741 SB

EG2M

1.86 MWh

Outdoor high-voltage energy storage system

Nominal Energy1.86 MWh
Usable Energy1.68 MWh
System Weight20,000 kg
Dimensions (W × D × H)2600 × 3200 × 3000 mm
Nominal Voltage1335.2 V DC

View full specifications

EG2M full specifications
Battery Type	LFP (LiFePO₄)
System Weight	20,000 kg
Dimensions (W × D × H)	2600 × 3200 × 3000 mm
Calendar Life	10 years
Nominal Energy	1.86 MWh
Usable Energy	1.68 MWh
Depth of Discharge	90%
Nominal Voltage	1335.2 V DC
Operating Voltage Range	1160–1500 V DC
Charge / Discharge Temperature	−20 °C – 55 °C
Storage Temperature	−20 °C – 45 °C
Humidity	0%–95%
IP Rating	IP65
Battery Monitoring System	SSRE battery monitoring system
Monitoring Parameters	System voltage, current, temperature, SOC, SOE, SOH
Fire System	Passive/active fire protection (optional)
Communication Interfaces & Protocols	RS-485 / CAN / Wi-Fi / Cellular / Modbus / RS-232 (Optional)
PCS Rated Power	1,500 kW
Grid Voltage	600 V AC
Maximum AC Current	1,672 A
Total Harmonic Distortion	< 3%
Grid Frequency	50 / 60 Hz
Peak Efficiency	98%
Power Factor	Continuously adjustable, −1 to 1
PCS Weight	2,600 kg
Safety Standards & Certifications	IEC 62619 / UL 1973 / UL 9540A / IEC 61000-6-2 / IEC 61000-6-4 / IEC 62477-1
Transport Compliance	UN 38.3
PCS Standards & Certifications	VDE-AR-N 4110 / G99 / IEC 62477-1 / IEC 61000-6-2 / IEC 61000-6-4 / IEEE 1547-2018 / UL 1741 / UL 1741 SB

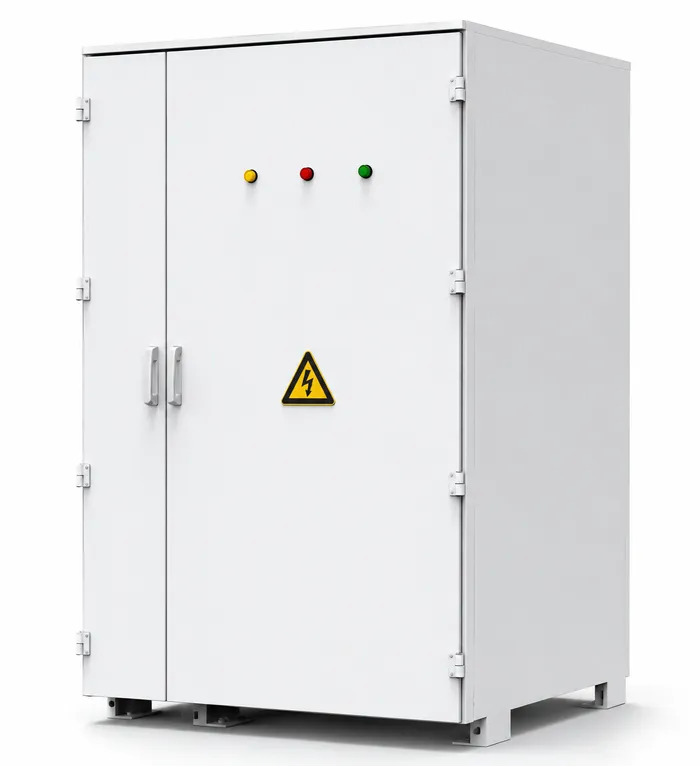

EG400K

372 kWh

Rack-format high-voltage energy storage system

Nominal Energy372 kWh
Usable Energy335 kWh
System Weight3,500 kg
Dimensions (W × D × H)1300 × 1300 × 2300 mm
Nominal Voltage1335.2 V DC

View full specifications

EG400K full specifications
Battery Type	LFP (LiFePO₄)
System Weight	3,500 kg
Dimensions (W × D × H)	1300 × 1300 × 2300 mm
Calendar Life	10 years
Nominal Energy	372 kWh
Usable Energy	335 kWh
Depth of Discharge	90%
Nominal Voltage	1335.2 V DC
Operating Voltage Range	1160–1500 V DC
Charge / Discharge Temperature	−20 °C – 55 °C
Storage Temperature	−20 °C – 45 °C
Humidity	0%–95%
IP Rating	IP65
Battery Monitoring System	SSRE battery monitoring system
Monitoring Parameters	System voltage, current, temperature, SOC, SOE, SOH
Fire System	Passive/active fire protection (optional)
Communication Interfaces & Protocols	RS-485 / CAN / Wi-Fi / Cellular / Modbus / RS-232 (Optional)
PCS Rated Power	1,725 kW
Grid Voltage	690 V AC
Maximum AC Current	1,448 A
Total Harmonic Distortion	< 3%
Grid Frequency	50 / 60 Hz
Peak Efficiency	98%
Power Factor	Continuously adjustable, −1 to 1
PCS Weight	2,600 kg
Safety Standards & Certifications	IEC 62619 / UL 1973 / UL 9540A / IEC 61000-6-2 / IEC 61000-6-4 / IEC 62477-1
Transport Compliance	UN 38.3
PCS Standards & Certifications	VDE-AR-N 4110 / G99 / IEC 62477-1 / IEC 61000-6-2 / IEC 61000-6-4 / IEEE 1547-2018 / UL 1741 / UL 1741 SB

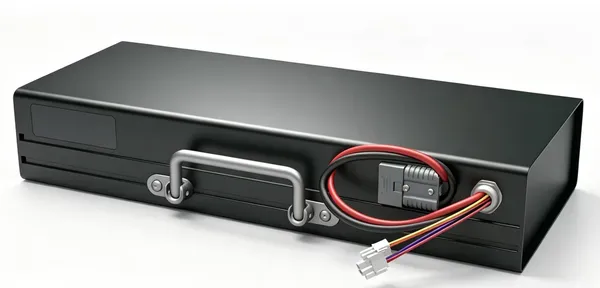

24V 75Ah Explosion-Proof Battery Pack

UN 38.3

Capacity75 Ah
Maximum Discharge Current150 A
Energy1937 Wh
Voltage25.83 V
Dimensions400 × 205.5 × 80.6 mm
Weight18 kg
Cycle Life2,000 cycles

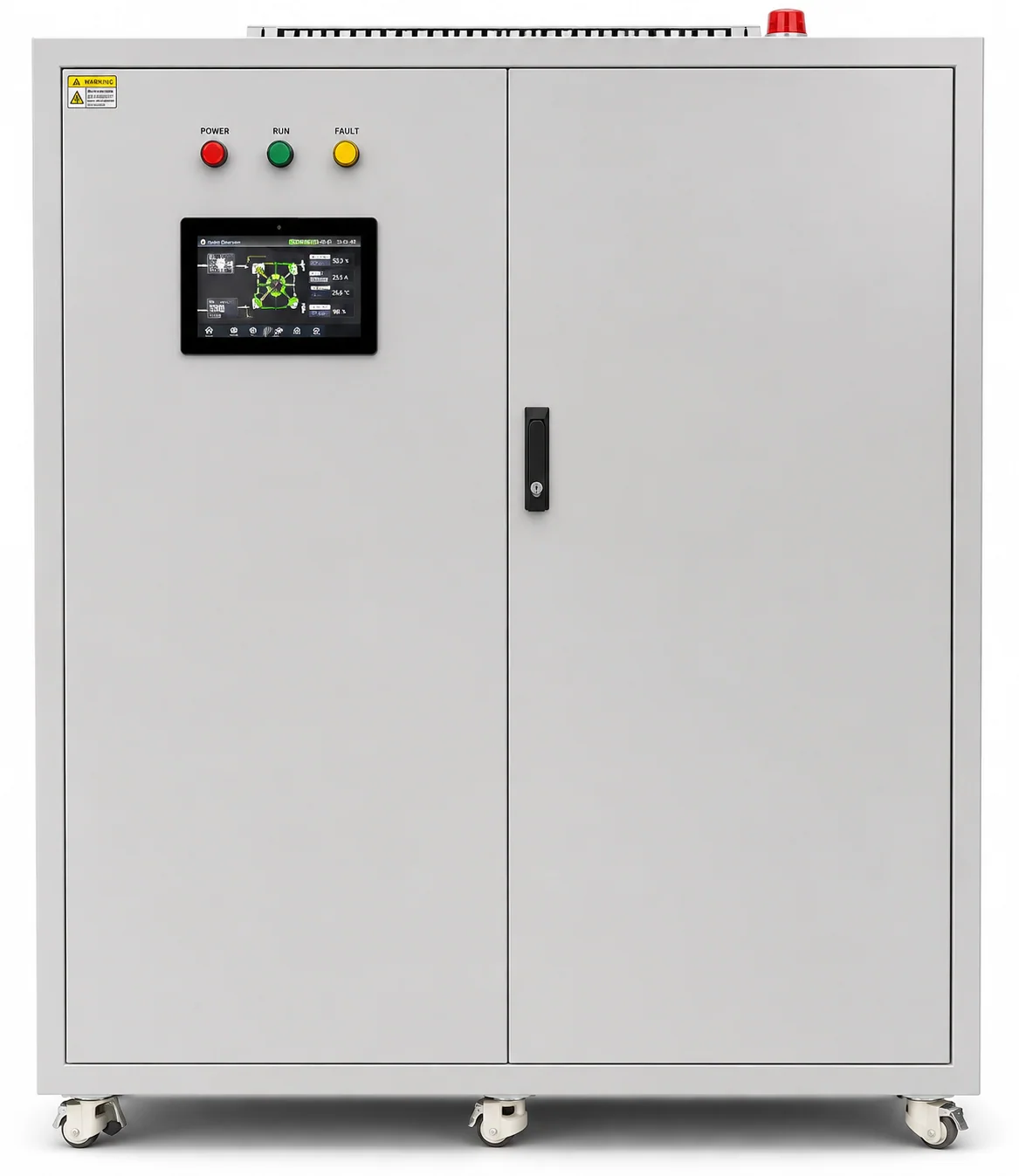

ES56K

56.32 kWh

System Energy20.48–56.32 kWh
Maximum System Power20 kW
System WeightApprox. 860 kg
Dimensions (W × D × H)1400 × 720 × 1850 mm
Battery Modules2.56 kWh × 8–22

View full specifications

ES56K full specifications
Battery Type	LFP (LiFePO₄)
Dimensions (W × D × H)	1400 × 720 × 1850 mm
System Weight	Approx. 860 kg
System Energy	20.48–56.32 kWh
Maximum System Power	20 kW
Depth of Discharge	90%
Cycle Life	5,000 cycles (0.5C @ 25 °C, SOH ≥ 80%)
Battery Module Energy	2.56 kWh
Battery Module Capacity	100 Ah
Module Nominal Voltage	25.6 V
Module Voltage Range	20 V–29.2 V
Module Current	Maximum 50 A
Modules in System	8–22, configurable
PCS Rated Power	20 kVA
AC Output Voltage	3W/N/PE, 380 V
Rated Frequency	50 Hz / 60 Hz
Power Factor	>0.99 (−0.8–0.8 adjustable)
MPPT Voltage Range	180 V–950 V
MPPT / PV Paths	2 / 2
Maximum PV Input Current	28 A
Battery-Side Voltage Range	180 V–700 V
Charge / Discharge Current	50 A / 50 A
Fire Detection	Temperature, smoke
Extinguishing Agent	HFC-227ea
Long-Term Fire Suppression	Inert liquid
Altitude	≤ 2000 m
Operating Temperature	0 °C – 40 °C
Humidity	5%–90%
IP Rating	IP21

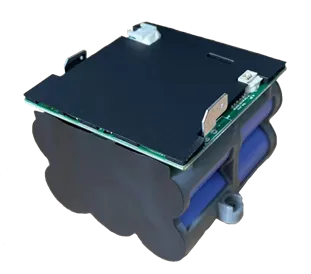

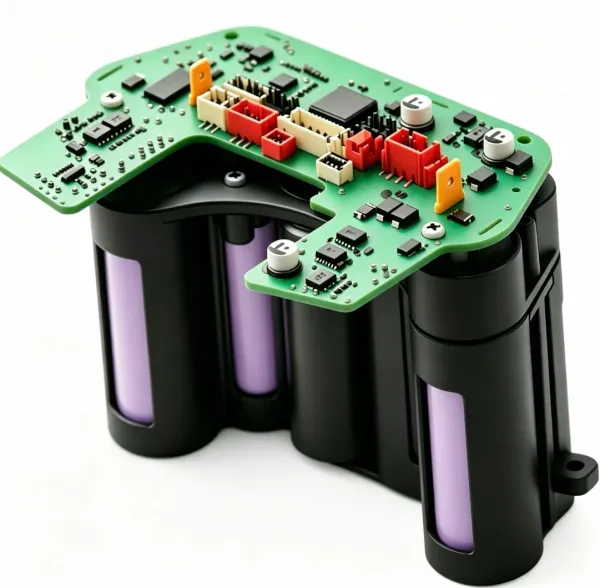

24V 4.0Ah Multi-Function Battery Pack

6S1P

Capacity4.0 Ah
Configuration6S1P
Energy86.4 Wh
Voltage21.6 V
Dimensions110.2 × 77.7 × 91 mm
Weight0.477 kg
Cycle Life500 cycles

03 / APPLICATIONS

Energy that goes further.

Connecting renewable generation, energy storage and electric mobility.

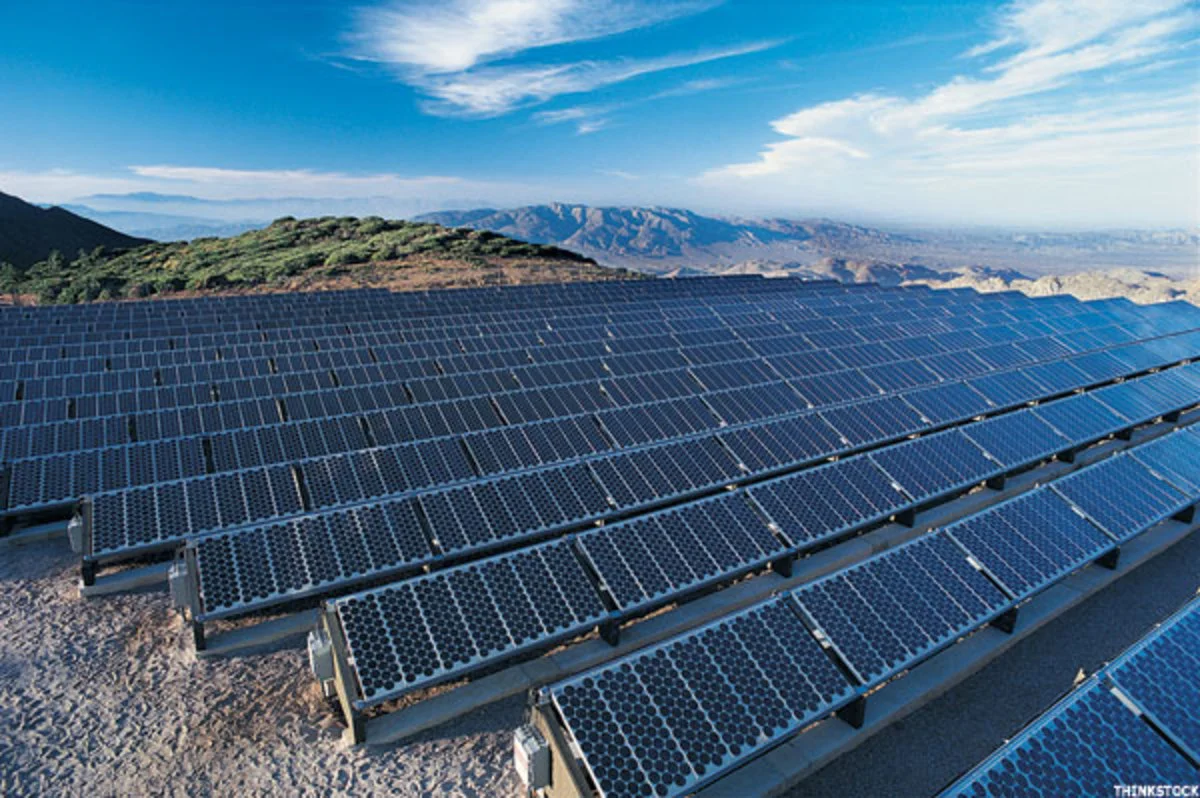

01 / SOLAR

Store the sunshine.

Modular battery systems bring flexibility to energy storage for solar installations.

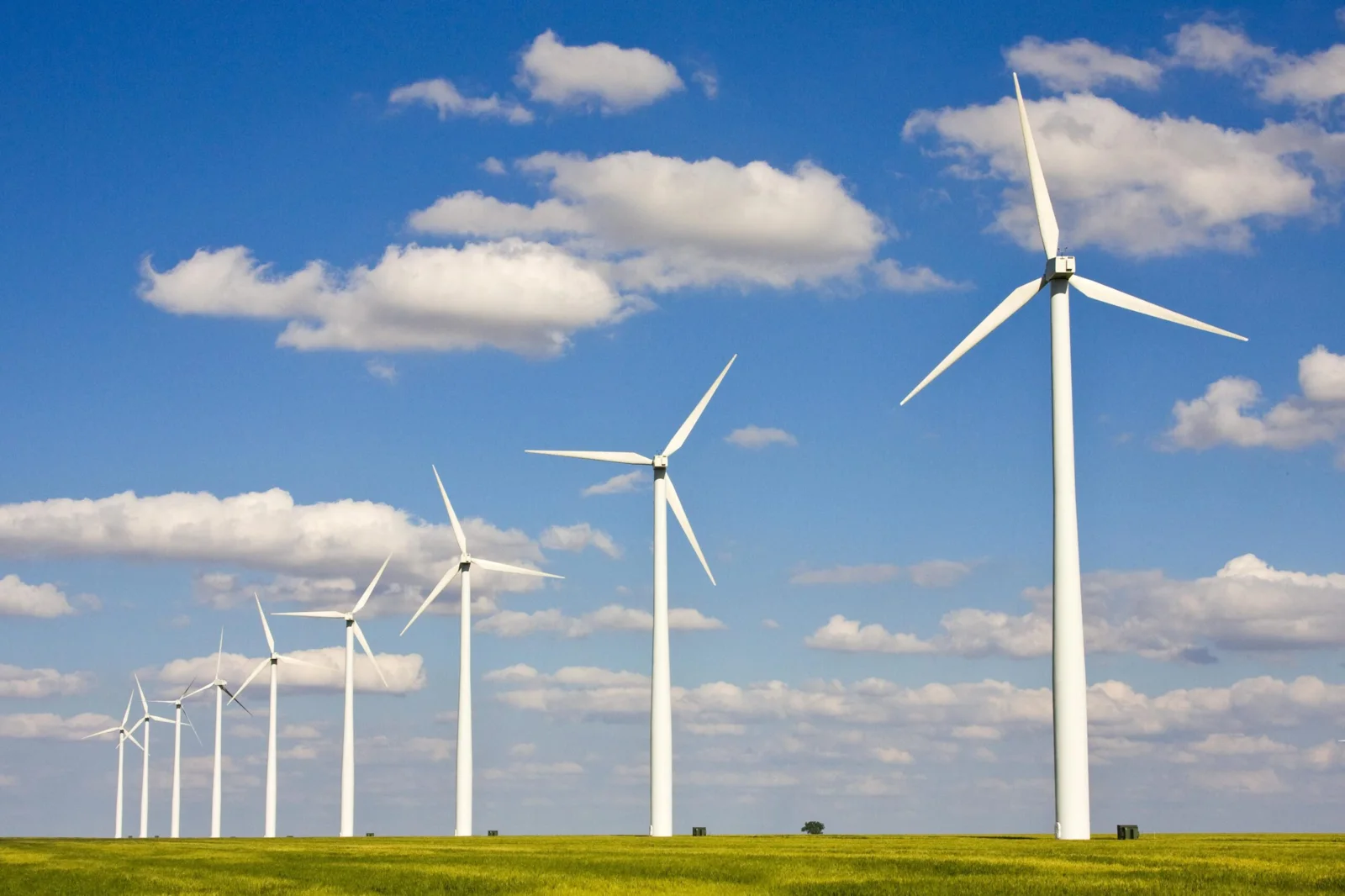

02 / WIND

Make more of the wind.

Configurable Li-ion storage connects renewable generation with the needs of your project.

03 / MOBILITY

Move beyond lead-acid.

Li-ion replacement batteries power small utility and commercial electric vehicles.

04 / LET’S CONNECT

Let’s get in touch.

Battery packs, energy storage or electric mobility.
Let’s find the right fit for your application.

Email: info@electramotorcorp.com
Location: Electra Motor Corporation
4249 West 9th Avenue
Vancouver, BC
Canada V6R 2C6
